LFMF-15-I2 LFMF-16-I2 LFMF-17-I2 Dwyer德威爾 轉子流量計

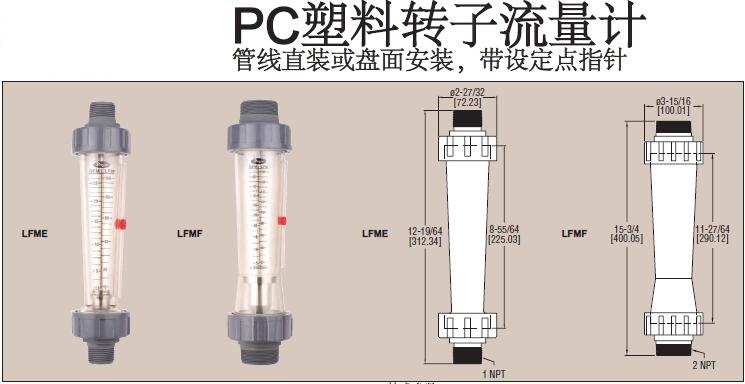

LFM系列 聚碳酸酯轉子流量計采用聚碳酸酯注模而成，具有很好的抗化學腐蝕性能和耐熱性。它采用了GPM和LPM雙刻度，精度為5%。刻度在背景襯托下，很容易讀數。LFMA，LFMB和LFMC都采用了1/2"NPT外螺紋接頭，LFMD采用了3/4" NPT接頭，LFME采用了1" NPT接頭，LFMF采用了2" NPT接頭。可選帶90度彎管接頭用于儀表盤柜安裝，并附帶安裝螺母。還可選擇其它的連接方式。

注意：LFM系列流量計僅能用于沒有陽光直射的室內，聚碳酸酯材料會受到紫外線的影響

The New LFM Series Flowmeters are made of injection molded, heat and chemically

resistant polycarbonate bodies and fittings. Series LFM flow meters have dual scales

measuring in both GPM and LPM with 5% accuracy. A textured background on the body

enhances scale readability. Standard in-line models come with 1/2? male NPT process

connections while panel mount installation is available with 90° elbow fittings that include

panel lock nuts. Various other fittings are available.

LFMF-15-I2 LFMF-16-I2 LFMF-17-I2 Dwyer德威爾 轉子流量計

技術指標

介質：水

材質表：

壓力范圍: 120 psi (8.2 bar) at 68°F (20°C); 90°彎頭: 116 psi (8 bar) at 68°F (20°C).
精度: ±5%.
過程連接:

LFMA: 1/2" male NPT
LFMB: 1/2" male NPT
LFMC: 1/2" male NPT

LFMD: 3/4" male NPT

LFME: 1" male NPT

LFMF: 2" male NPT

重量: LFMA: 2 oz (56.7 g); LFMB: 3 oz (85.0 g); LFMC: 4 oz (113.4 g); LFMD: 10 oz (283.5  g); LFME: 15 oz (425.2 g); LFMF: 40 oz (1.1  kg)

型號表

可選附件

LFMA
A-560 20 mm公制耦合接頭 - ABS
A-566 1/2" 外螺紋接頭 - ABS

LFMB
A-561 20 mm 公制耦合接頭 - ABS
A-567 1/2" 外螺紋接頭- ABS
A-575 1/2" 外螺紋帶90° 轉接頭 - PVC

LFMC
A-562 20 mm 公制耦合接頭 - ABS
A-567 1/2" 外螺紋接頭- ABS
A-568 3/4" 外螺紋接頭- ABS
A-576 1/2" 外螺紋帶90° 轉接頭- PVC

LFMD
A-563 32 mm 公制耦合接頭 - PVC
A-569 3/4" 外螺紋接頭- Nylon
A-572 3/4" female NPT Fitting - Nylon
A-577 3/4" 外螺紋帶90° 轉接頭- PVC

LFME
A-564 40 mm 公制耦合接頭 - PVC
A-570 1" 外螺紋接頭- Nylon
A-573 1" 內螺紋接頭- Nylon
A-578 1" 外螺紋帶90° 轉接頭- PVC

LFMF
A-565 63 mm 公制耦合接頭 - ABS
A-571 2" 外螺紋接頭- Nylon
A-574 2" 內螺紋接頭- Nylon
